So, let’s talk about CNC milling. You’ve probably heard of it. Maybe you know it’s used for making parts and stuff, but what does it really mean? CNC milling is a manufacturing process, but it’s not some fancy term that’s all techy and impossible to understand.

At its core, CNC milling is about using computers to control machines that cut and shape materials. It’s precise, efficient, and it’s everywhere. From car parts to medical devices, CNC milling has a lot to offer. But how does it work? And why is it so important?

What Exactly Is CNC Milling?

First things first. CNC milling stands for “Computer Numerical Control” milling. It’s a method where a computer guides the movement of a machine tool to cut away at a solid piece of material—metal, plastic, wood, you name it. Think of it like carving a sculpture, but instead of using chisels and hammers, the machine uses cutting tools and high-tech instructions.

So, instead of a person physically turning a wheel to shape a piece of metal, the CNC machine gets its instructions from a computer. A code called G-code controls it, telling the machine exactly how to move, how fast to move, and what tools to use. It’s pretty cool when you think about it. Many things we use daily are made this way.

How Does CNC Milling Work?

Let’s get into the details of how this all happens.

  1. Designing the Part: First, a designer creates the part on a computer, usually using a CAD (computer-aided design) program. It could be something simple like a gear or something complex like a part for a jet engine.
  2. Programming the Machine: Once the design is ready, it gets converted into G-code. G-code is basically the “language” the CNC machine understands. This code tells the machine everything it needs to know—where to move, when to stop, what tool to use, and so on.
  3. Setting Up the Machine: The material (the block of metal or whatever) is placed onto the machine. The material is held in place using clamps or fixtures, and the machine makes sure it stays steady while cutting.

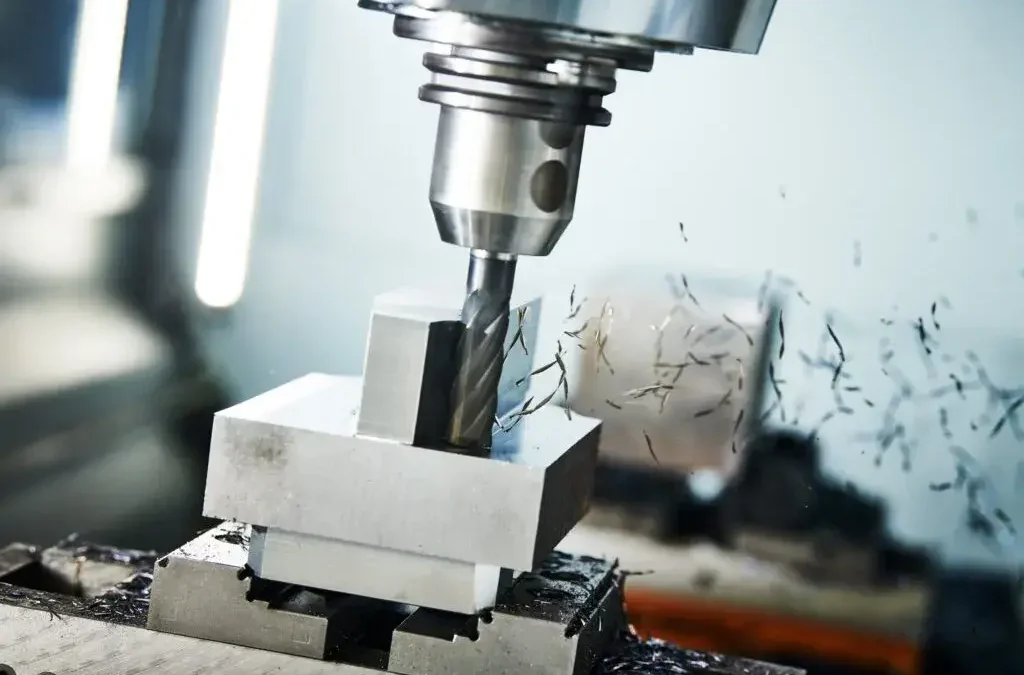

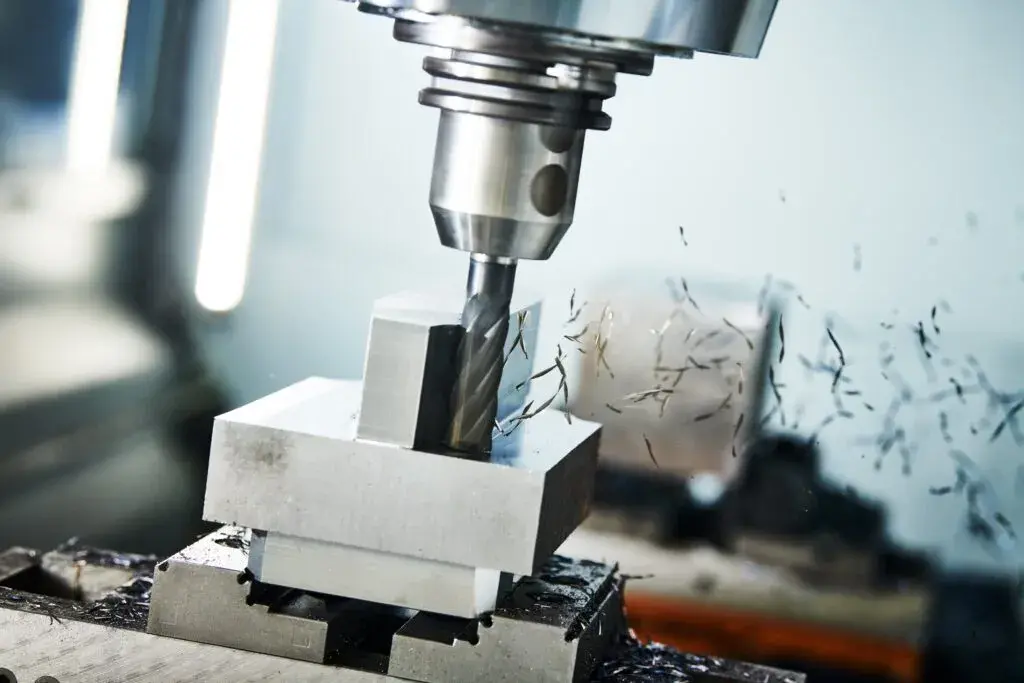

  4. Cutting the Material: The CNC machine uses different tools (like drills or mills) to start cutting the material into the shape you want. The machine moves along different axes—X, Y, and Z—to make precise cuts. The number of axes depends on the type of machine.
  5. Finishing Touches: After the main cuts are done, some finishing work is often needed. This could involve smoothing rough edges or making finer adjustments to the part. Sometimes, additional tools are used for this, like sanders or polishers.

Types of CNC Milling Machines

There are different types of CNC milling machines, and they vary depending on the complexity of the job. The most common ones are:

  • 3-Axis Milling: This is the most basic kind of CNC milling machine. It moves in three directions: left-right (X-axis), front-back (Y-axis), and up-down (Z-axis). This is great for making simple parts or features on a part.
  • 4-Axis Milling: 4-axis milling machines can rotate the part while cutting, thanks to an additional axis that allows rotation. This is helpful for parts that need more complex cuts on different sides.
  • 5-Axis Milling: This is for the big stuff. 5-axis milling machines can move a part in five different ways: three linear axes (X, Y, Z) plus two rotational axes. This makes them perfect for really complicated parts, like those found in aerospace or medical equipment.

CNC Milling Tools

What tools are used in CNC milling? Well, there’s a whole variety, and the type of tool depends on what needs to be cut.

  • End Mills: These are the most common. Most companies use end mills to cut sideways, removing material in all directions. They come in different shapes, like flat, ball-shaped, or corner-radius, depending on the part’s needs.
  • Drills: Drills are for making holes. You need to be precise with these, and CNC machines can drill holes of all sizes, depths, and angles.
  • Face Mills: They use these to smooth out large, flat surfaces. If you need to remove a lot of material quickly, face mills are your go-to tool.
  • Taps: If you need threads inside a hole, taps are the way to go. They make threaded holes that are perfect for bolts or screws.
  • Reamers: After drilling a hole, sometimes you need to make it more accurate or smoother. They use reamers for this.

Why CNC Milling Is Important

Okay, so CNC milling sounds pretty fancy, but what makes it so important? There are a few key reasons why it’s such a big deal.

  1. Precision: The main reason CNC milling is so popular is because it’s super precise. These machines can make parts with tolerances as tight as 0.01mm. That’s a huge deal when you’re building stuff like car engines or medical devices that need to fit together perfectly.
  2. Speed: CNC machines are quick. Once you program them, they can run continuously and cut parts much faster than a person could ever do by hand. For mass production, that speed makes a big difference.
  3. Complexity: CNC milling can create complex shapes and parts that would be almost impossible to make by hand. This is why industries like aerospace use it, where parts have complicated designs and need precise manufacturing.
  4. Consistency: Once set up, the CNC machine can make the exact same part every time. Even if you are making one part or 1,000, you’ll get the same high-quality result each time. This consistency is key for industries that rely on precision.
  5. Material Flexibility: CNC milling works with all kinds of materials. So, be it plastic, metal, wood, or even harder materials like titanium, CNC machines can handle it.

CNC Milling vs. 3D Printing

It’s easy to compare CNC milling with 3D printing since both are popular methods of making parts. So, how do they stack up?

  • CNC Milling: It’s a subtractive process. This means it starts with a block of material and removes bits of it until it gets the final shape. It’s great for making parts with high precision and strength.
  • 3D Printing: 3D printing is an additive process. This means it builds up material layer by layer to create a part. It’s perfect for creating complex geometries and prototypes but can lack the precision and strength of CNC milling.

So, while 3D printing has its place, CNC milling is still the go-to for creating strong, precise parts.

Where Is CNC Milling Used?

Industries use CNC milling everywhere, including:

  1. Automotive: Manufacturers use CNC milling to make car parts, like engine components, gears, and brackets.
  2. Aerospace: In aerospace, parts need to be lightweight but strong and precise. CNC milling helps make these parts, which are often complex.
  3. Medical: In the medical field, CNC milling is useful for custom implants, surgical tools, and prosthetics.
  4. Electronics: Manufacturers often make smartphone casings and other electronic components with CNC milling.
  5. Consumer Goods: Manufacturers use CNC milling to make everyday items, from kitchen gadgets to sports equipment.

Conclusion

So, that’s CNC milling in a nutshell. It’s a process that uses computers to guide machines that cut away material, shaping it into parts used in tons of different industries. Be it for cars, airplanes, medical devices, or electronics, CNC milling is everywhere, and it’s what makes precision manufacturing possible. It’s quick, accurate, and versatile, and that’s why it’s so important. When you need parts that need to fit together perfectly and perform well, CNC milling is the way to go.
